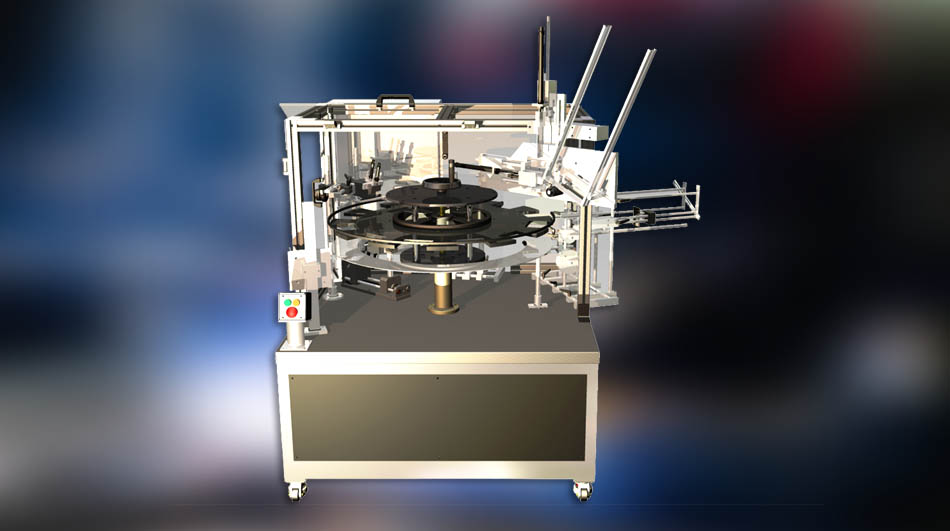

VS-CS 50 series Cartoning are intermittent motion Semi-automatic cartoning machines capable of packing reverse type tuck in cartons for various industries like Pharma, Food, Cosmetics, etc.
Manufactured with cGMP norms, having branded components for electric and pneumatic functions.
Simple and steady design confirms the machine performance and stability. With various arrangements of feeders it can auto feed, Bottles, Vials.
Blisters, Tubes, Strips & pouch to be manually feed. Leaflet Autofeeding is available.
| Machine Dimension Specification : | |||
| L = 1800 | W = 2000 | H = 1700 | Weight = 500Kgs |
| Working Area : | |||
| L = 3000 | W = 3500 | H = 2500 | - |
| Carton Specification Dimension : | |||
| Maximum | L = 150 | W = 70 | H = 70 |
| Minimum | L = 70 | W = 30 | H = 30 |
| Weight GSM | Min. 300 | Max. 350 | - |
| Prefolded Leaflet Specification Dimension : | |||
| Maximum | L = 190 | W = 35 | Weight = 65 GSM |
| Minimum | L = 100 | W = 22 | Weight = 55 GSM |
| Utility Required : | |||
| Air Pressure | 6 ~ 7 bar | ||
| Air Consumption | 250 ~ 300 Lt/min | ||
| Electrical Specification : | |||
| Connected Load | 1 kW | ||
| Rated Voltage | 415 + 10% V | ||
| Frequency | 50 + 2% Hz | ||
| Connection | 3 wire | ||
| Speed : | |||
| Standard Machine Cycles | 35 - 45 Cycles per min* *Carton speed depend upon product size & shape, packing material & feeding arrangement. |
||
