Overwrapping Machine

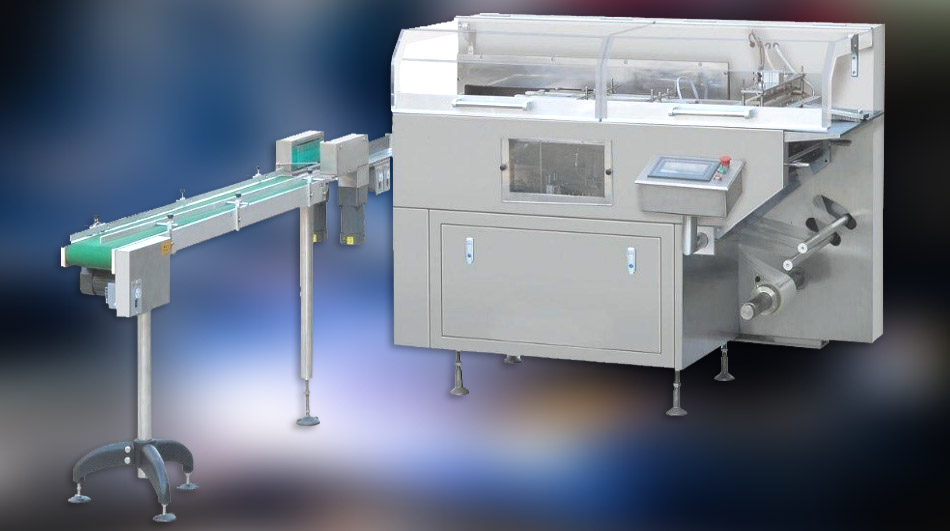

Machine Picture is tentative.

Description :

Creating the perfect collated pack or wrapped pack is the ultimate goal in the packaging line. Many procedures that were previously carried out by people in a distribution center are now off-loaded to machinery, increasing the speed and accuracy of operations.

When you look at the extra cost and time lost in unproductive work, overtime, and injury, you begin to see the benefit a Overwrapping Machine can bring to your company. Let us check information on how a Overwrapping can improve productivity and reduce costs

Over Wrapping Machine offers these primary benefits :

  • Increases productivity :
    The average worker erects three boxes every minute. A basic over rapping can produce 20-30 packs per minute.
  • Reduces staff hours :
    That means you can reduce the number of people working in the area, reduce overtime, or reassign the labour pool, so the extra people can work elsewhere.
  • Reduce repetitive strain and the possibility of injury :
    Anyone who performs the same task over and over again knows the pain of repetitive strain injury.
  • Reduces inventory protection :
    Reduces inventory protection of Goods from Damage, Dust and Moisture
  • Reduces shipping damages :
    Hand packing can often lead to unsquared packing, which are weaker when stacked on a pallet. But square can withstand heavier weights, which means they are less prone to shipping damage. Using a overwrapping for stack can help ensure products arrive intact and undamaged.

Technical Specification :

Machine Dimension Specification :
L = 2100 W = 1200 H = 2000 Weight = 500Kgs
Working Area :
L = 4100 W = 3200 H = 2500 -
Packing Material : BOPP/PVC
Film Thickness : .022mm to 0.030 mm
Utility Required :
Air Pressure 5 ~ 6 bar
Air Consumption 40 - 60 Lt/min
Electrical Specification :
Connected Load 3.5 kW
Rated Voltage 415 + 10% V
Frequency 50 + 2% Hz
Connection 3 Ph
Speed :
Standard Machine Cycles 6 - 20 packs per minute*
(Speed depends on the box size, stack size)
